Adjustable clip for wire and tape (D10-12)
Adjustable clip for wire and tape (D10-12)
Couldn't load pickup availability

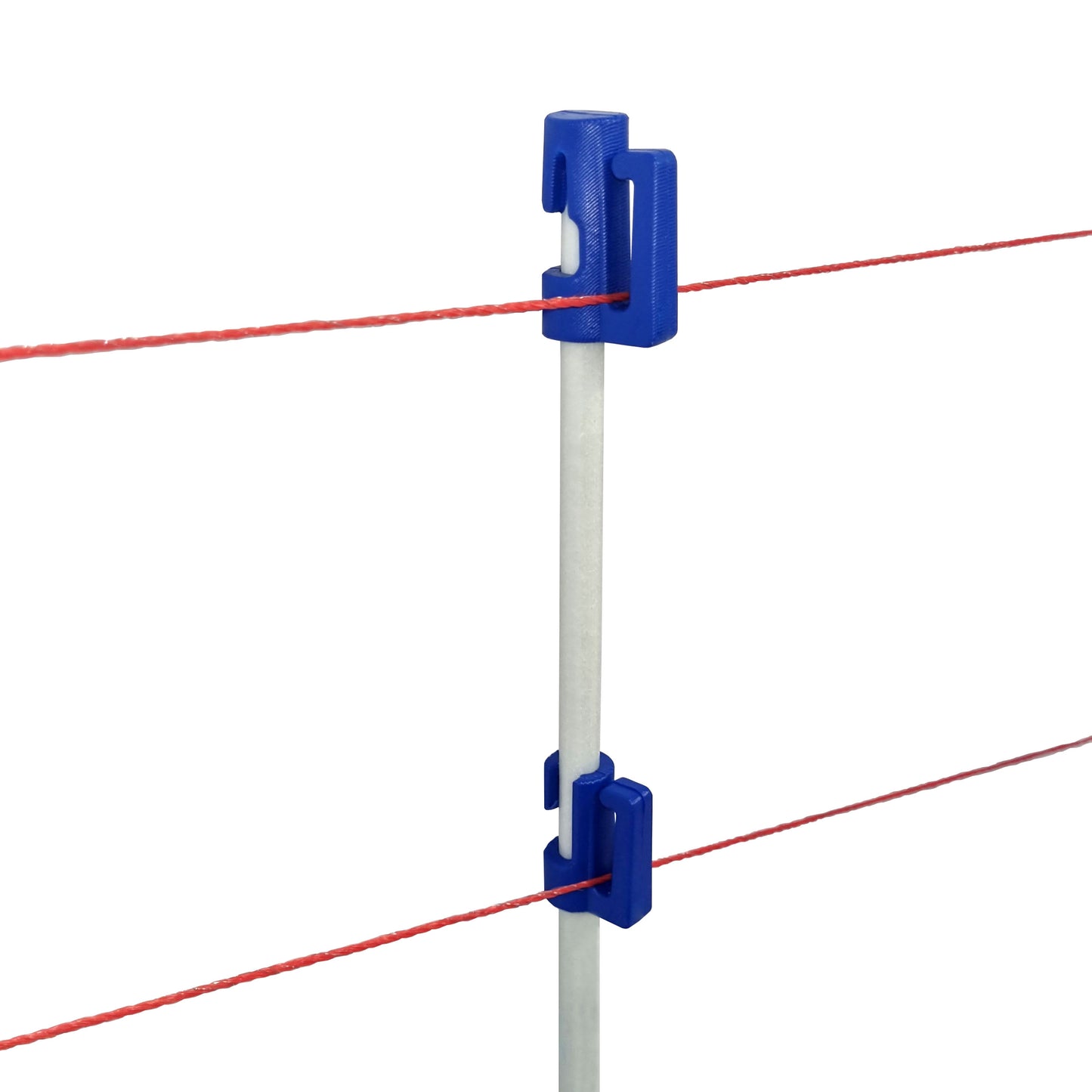

Plastic wire/strip holder for electric enclosure posts.
WHAT IS IT?
WHAT IS IT?

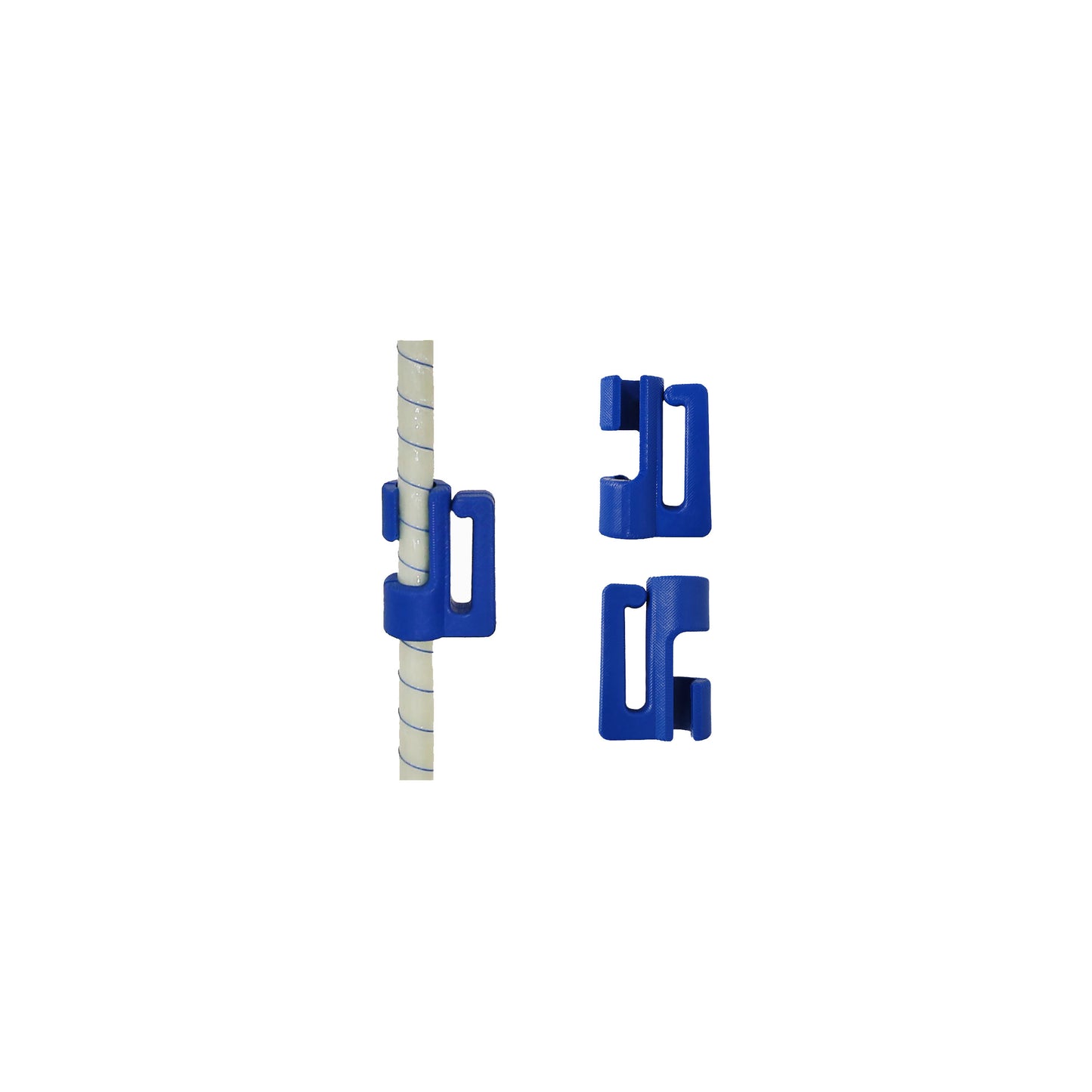

Wire/tape holders which can be
fixed on Ugira LT 10 mm and 12 mm diameter fiberglass posts. Suitable for wire
and tape up to 25 mm width.
Color: blue
Material: plastic.
MORE INFO
MORE INFO
- Can be fixed on Ugira LT 10 mm and 12 mm diameter fiberglass posts.
- Suitable for wire and tape up to 25 mm width.

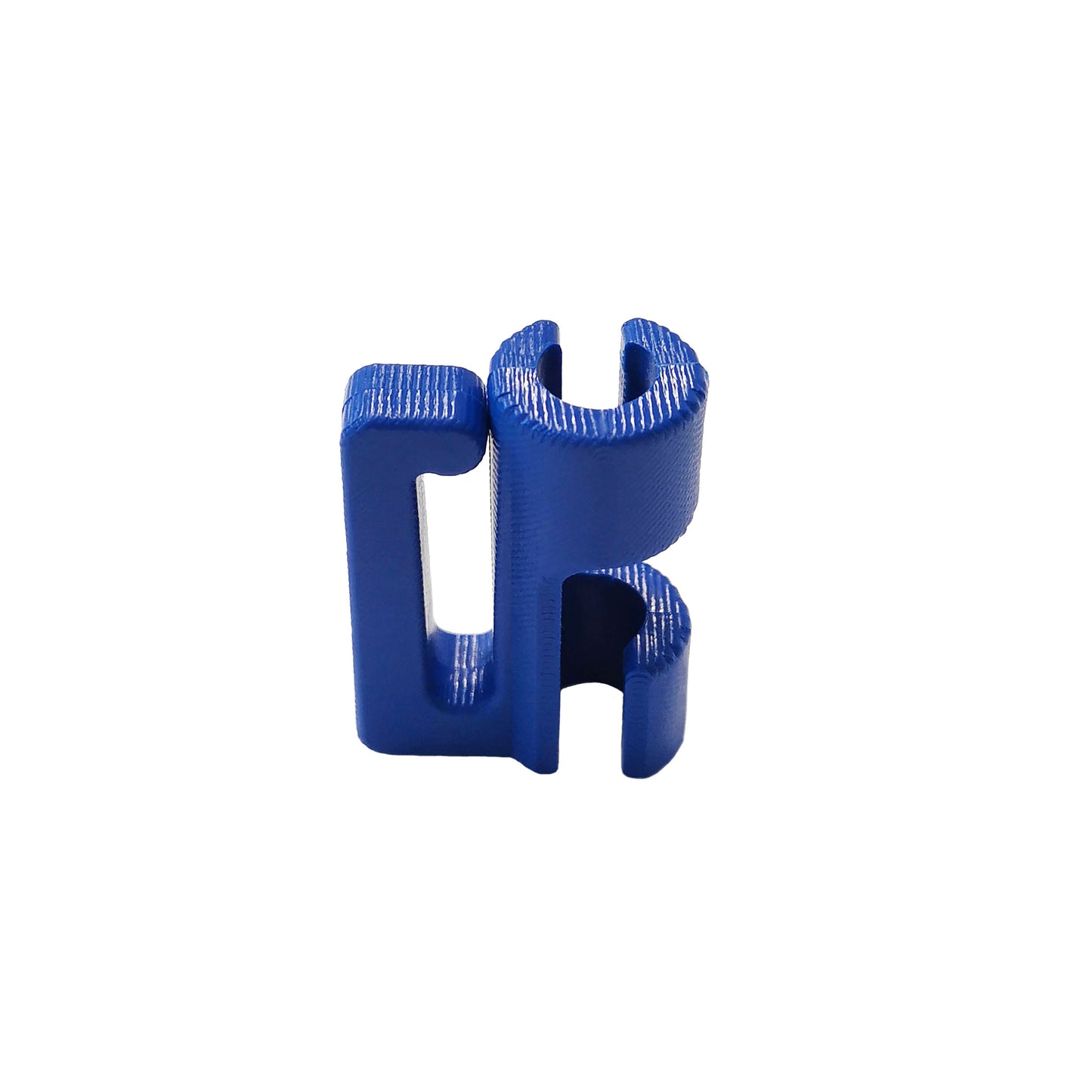

- Strong flanges protecting from breakdown.

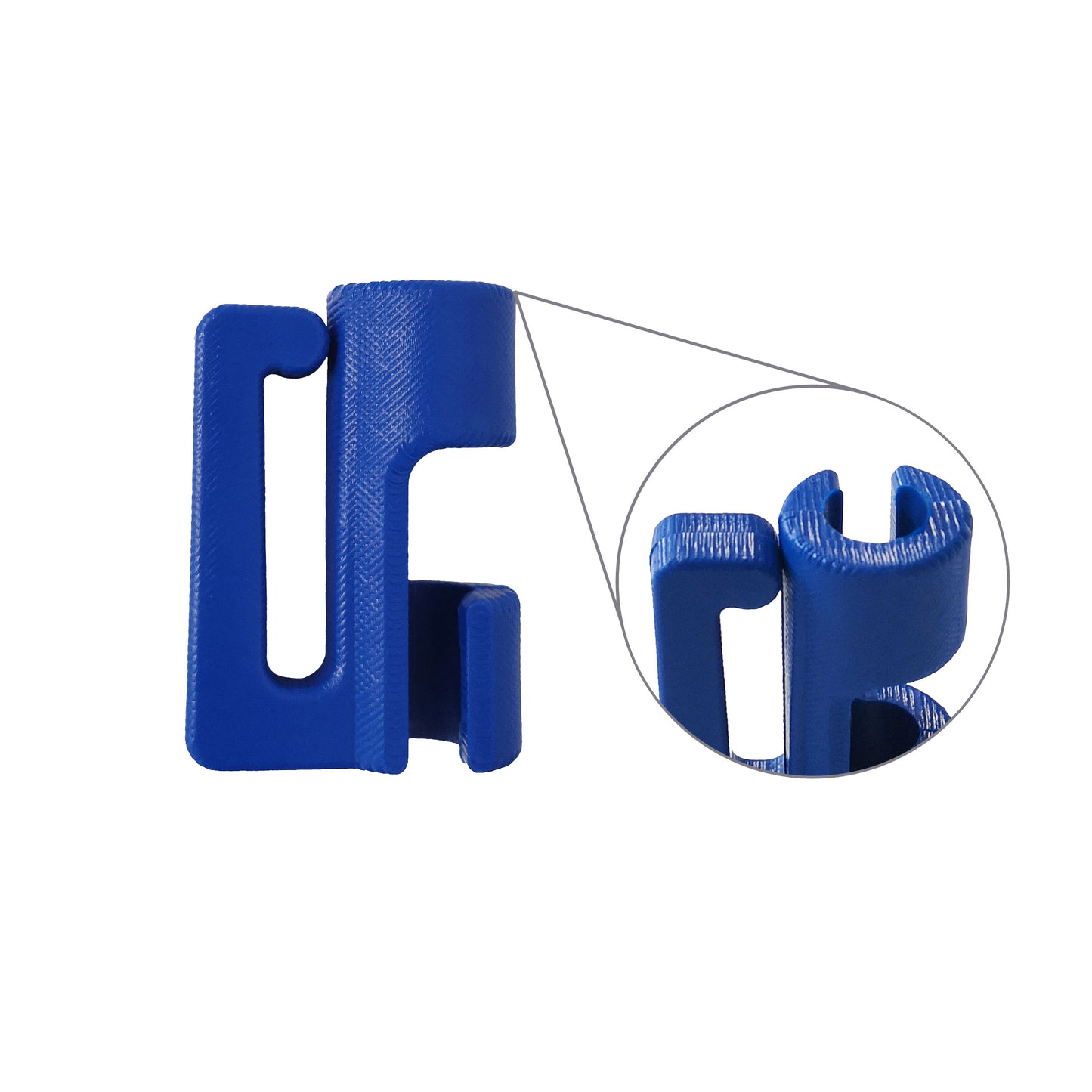

- Rounded edges protecting the cable.
DELIVERY
DELIVERY
The goods will be delivered using DPD courier services.
Delivery time: 2-5 working days.
There is a possible to pick up your order at: Varpo str. 43, Šunskai, Marijampole mun.

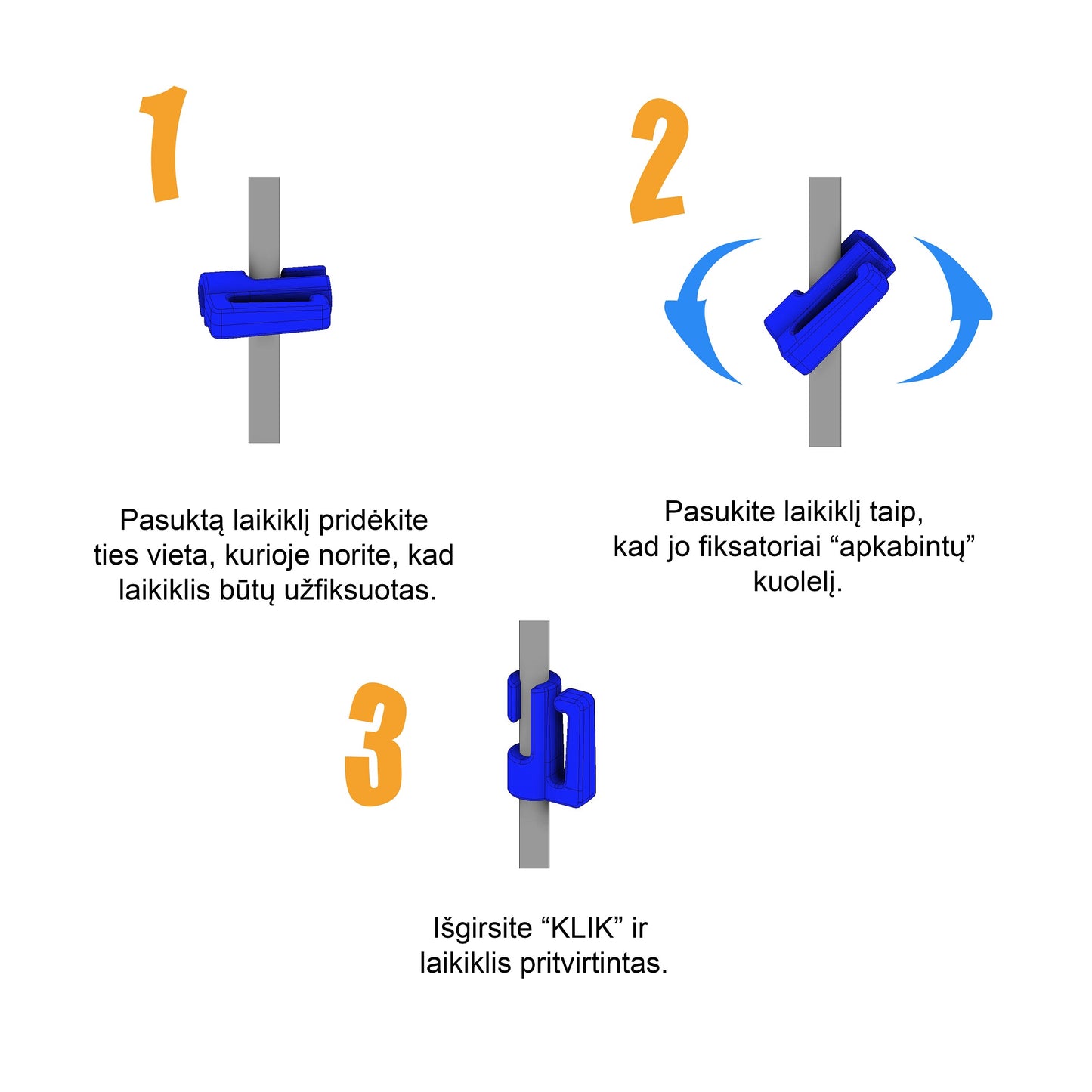

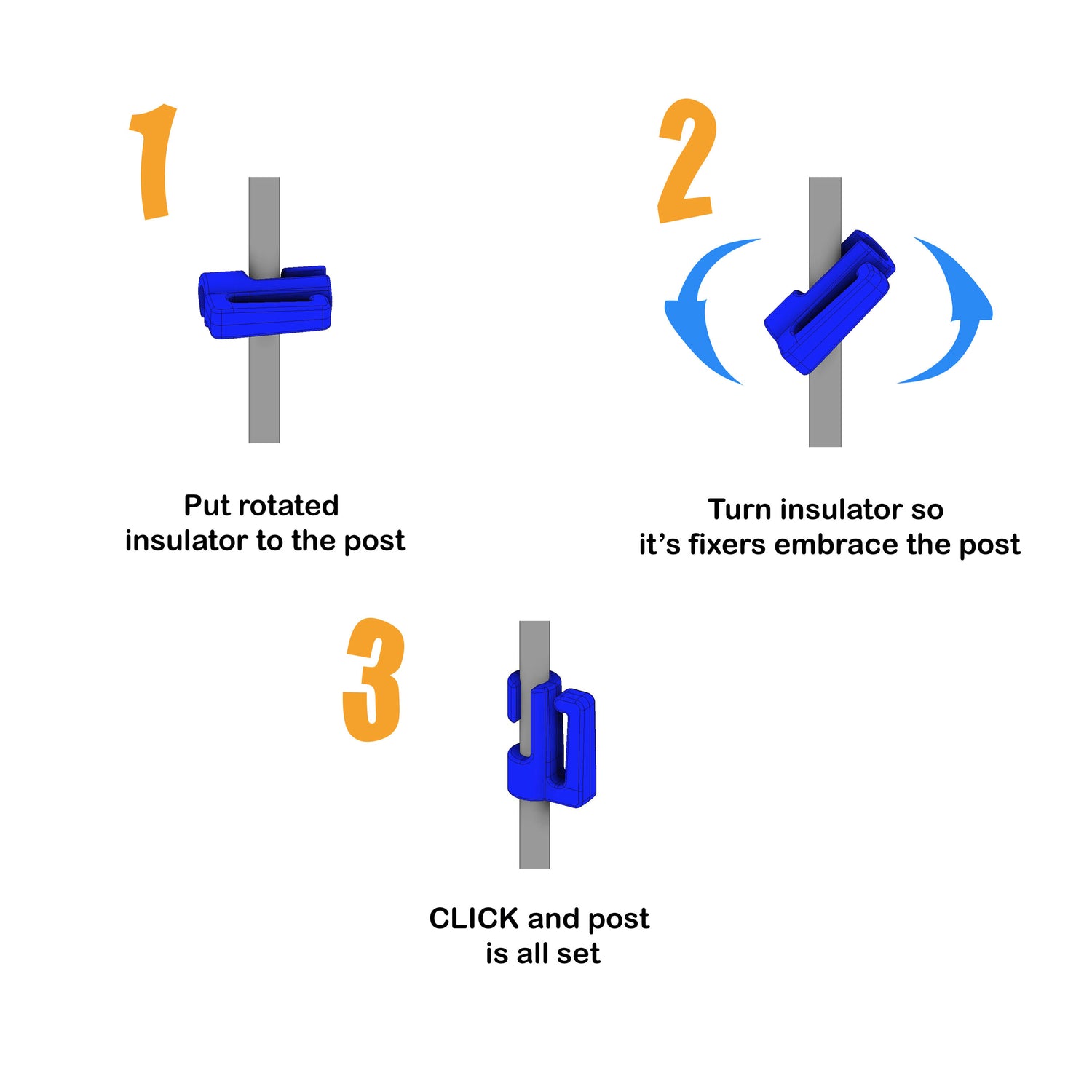

How to use it
1. Put rotated holder to the post.
2. Rotate holder so it's fixers embrace the post.
3. "CLICK" and the holder is ready.
Technical characteristics of plastic post parts
|
|
Plastic footstep |
Top Ugira LT clip |
Adjustable Ugira LT clip |
Adjustable ISOBLOC insulator |
|||
|
|
10 mm diameter post |
12 mm diameter post |
10 mm diameter post |
12 mm diameter post |
10 mm diameter post |
12 mm diameter post |
|
|
Composition |
PA6 |
PA6 |
TPO |
TPO |
TPO |
TPO |
NA |
|
Weight |
35 g |
40 g |
7 g |
12,4 g |
5,8 g |
10,1 g |
202 g |
|
Electrical conductivity |
Nonconductive |
||||||
|
UV resistance |
UV stabilized |
||||||

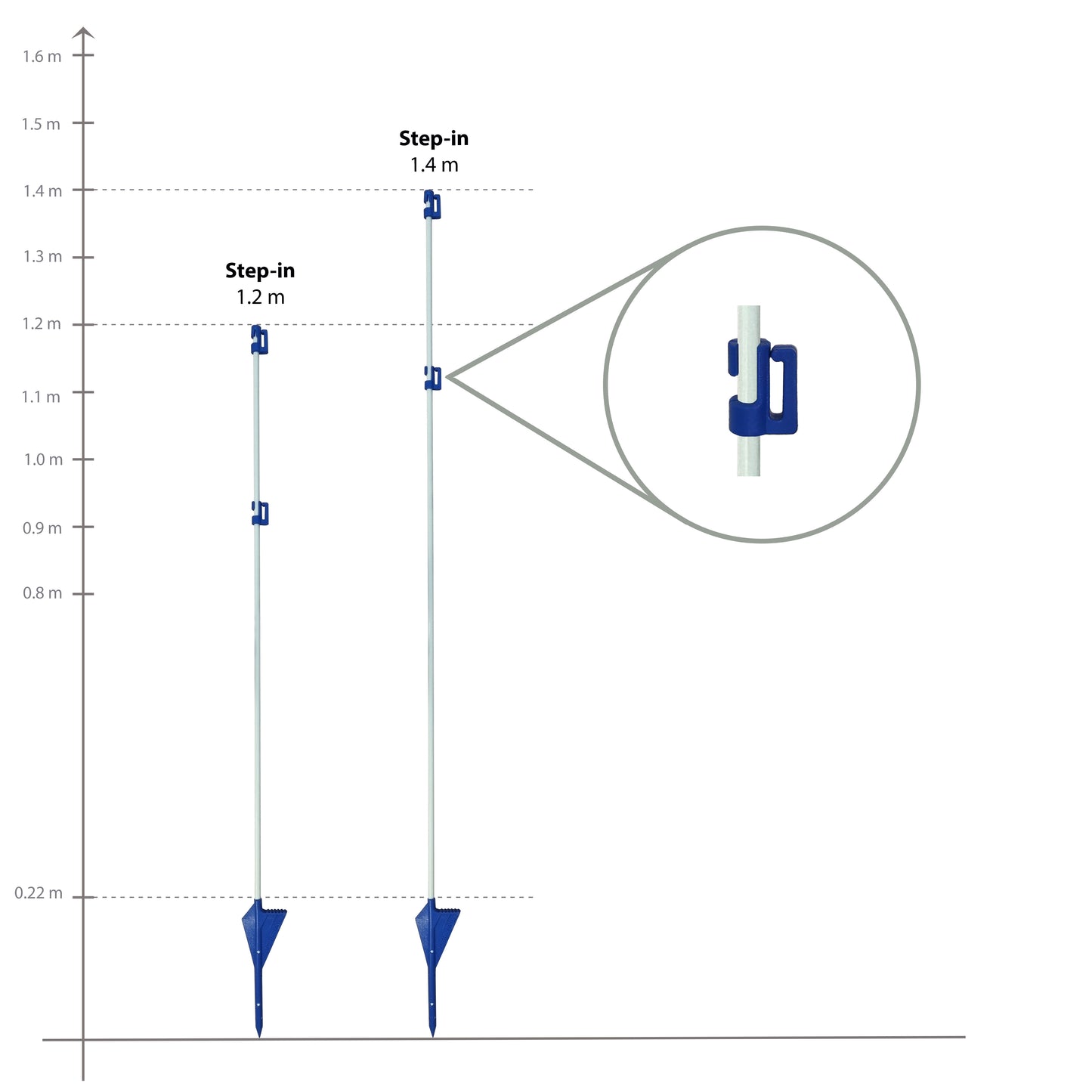

RECOMMENDED HEIGHTS
We can make posts to your desired length. To make it easier for you to choose the right ones, the graphs show the wire and tape heights that farmers usually choose depending on the animals they want to enclose or to protect themselves from.
In the table below, we list post diameter that we recommend choosing depending on the post length.
Recommended heights
|
Post height above ground |
Total length of perimeter post |
Total length of corner post |
Recommended diameter of perimeter post |
Recommended diameter of corner post |
Most often fenced animals |
|
1,40 m |
1,60 m |
1,70 m |
12 mm, 16 mm |
16 mm |
Horses, deers |
|
1,30 m |
1,50 m |
1,60 m |
12 mm, 16 mm |
16 mm |
|
|
1,20 m |
1,40 m |
1,50 m |
12 mm |
16 mm |
Wolves |
|
1,10 m |
1,30 m |
1,40 m |
10 mm, 12 mm |
12 mm, 16 mm |
Goats |
|
1,00 m |
1,20 m |
1,30 m |
10 mm |
12 mm, 16 mm |
Cattle, cows, sheep |
|
0,90 m |
1,10 m |
1,20 m |
10 mm |
12 mm |
|
|
0,80 m |
1,00 m |
1,10 m |
8 mm, 10 mm |
12 mm |
Wild boars |
|
0,60 m |
0,80 m |
0,90 m |
8 mm, 10 mm |
10 mm, 12 mm |
Rabbits, otters |
In the table, total length of the perimeter post is given assuming that 20 cm post is driven into the ground and 30 cm for the corner post. How deep the post should be driven into the ground must be evaluated based on the hardness of the ground. Usually, perimeter post is driven 15-30 cm into ground, corner post – 25-40 cm.
